My custom FH-2 configuration tool is available at francoisgeorgy.ch/fh2.html.
The source code is available at GitHub.
Disclaimer :
This version has not been as thoroughly tested as the official release and might not work perfectly. If you encounter any problems, please refer to the official version for a stable experience. I don't offer any support for this customized version.

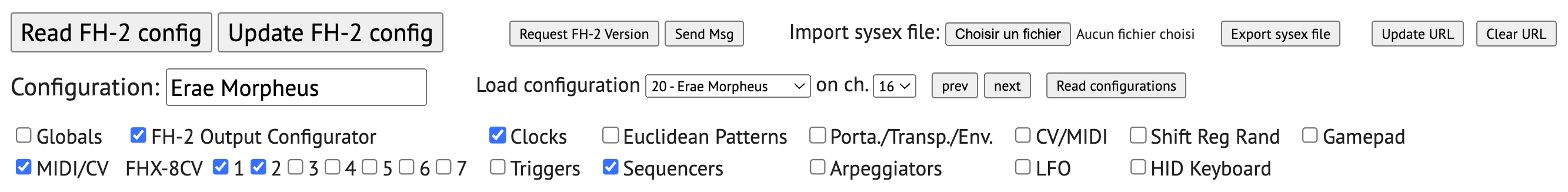

Main menu re-organized and with new features :
The first two FHX-8CV are automatically selected because that's the config I have in my studio. I will update to the tool to start with no selection and save your choice between sessions.
Configurations management :
The Read configurations button will load all the configurations names from the FH-2.
The Load configuration drop box allows to quickly select and load a configuration. The prev and next buttons will load the previous/next configuration.

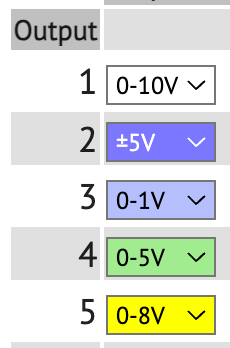

CV range colors :
The output ranges are colorized to better stand out.
Sysex import/export :
Load a sysex preset from a file or export the current configuration as a sysex file.

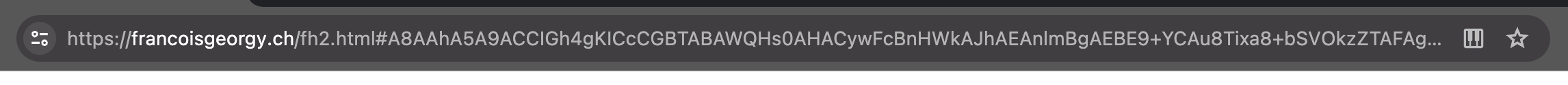

Sysex in the URL :
The Update URL will add the configuration sysex in the URL, as a fragment (what comes after the first #). This allow to bookmark a configuration with a URL. The Clear URL button will remove this sysex from the URL.
When you re-open this URL, the tool will detect the sysex and automatically configure itself according to this sysex. It will not update the FH-2. This just load the sysex config in the tool. You still have to click the Update FH-2 config button if you want to save this config in your FH-2.

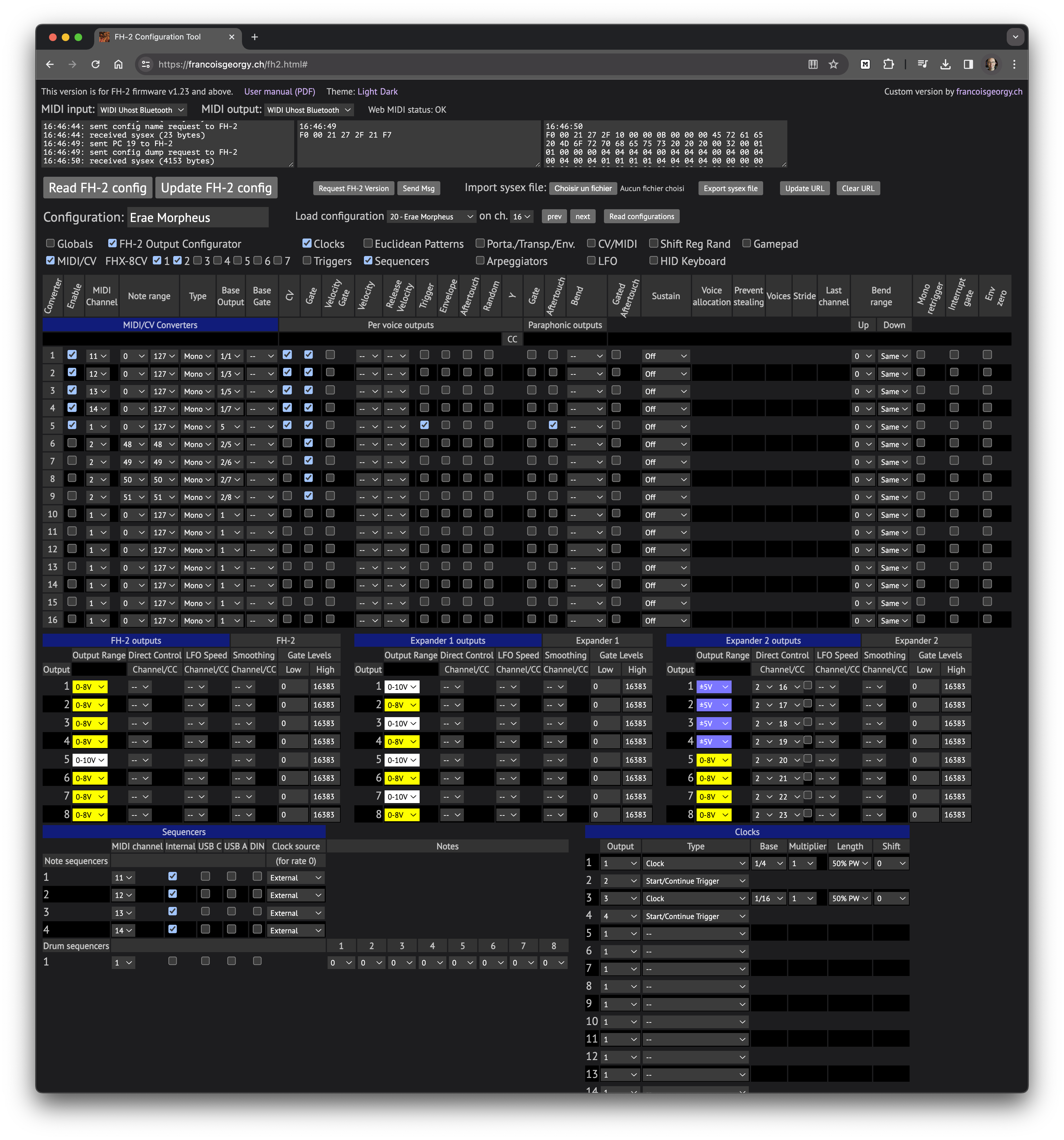

Dark and Light modes :
The dark mode theme is a bit different, with no border around the controls for example.
Other changes
The tools should load much faster, thanks to some refactoring of the code (less document.write calls).
