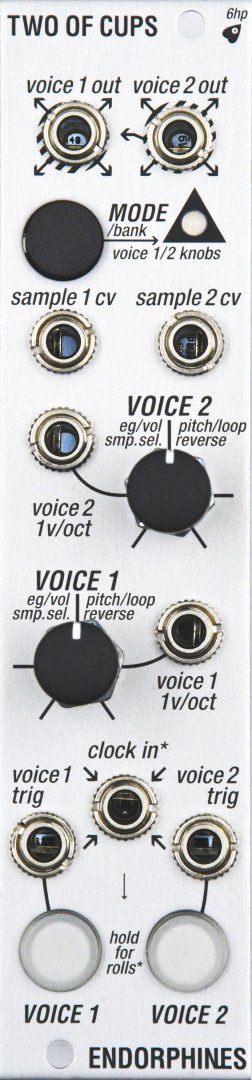

Endorphin.es Two of Cups

The notes below are for firmware 2.04 or later.

  • 8 banks
  • Up to 24 files per voice (was 10 files per voice in initial release)
  • SD card format type: FAT
  • Supported files:
    • .wav or .WAV files only.
    • recommended file name length: 20-30 symbols.
    • must be 8 or 16 bit PCM WAVE with arbitrary sample rate.
  • Trigger delay: up to 1 second (default value: 0 msec (instant playback); recommended value: around 20 msec)

Mode :

  • blue: envelope decay
  • semi-blue: volume adjustment
  • red: pitch
  • semi-red: all the samples looping in the voice on/off
  • fuchsia: sample selection
  • violet: sample meta select.
  • semi pink: no function yet, as it is reserved for samples reverse in the voice on/off
